This range of high quality BNC connectors offers excellent mechanical and electrical performance and simple assembly. Precision machined components give true 75 ohm impedance and excellent return-loss, even at frequencies up to 4.5GHz, making them suitable for 3Gb/s HD-SDI 1080p, SD-SDI and analogue video. A compact variation on the traditional BNC twist-lock connector, mating / un-mating is achieved by twisting the whole connector, rather than just an awkward knurled front coupling nut as on conventional styles.

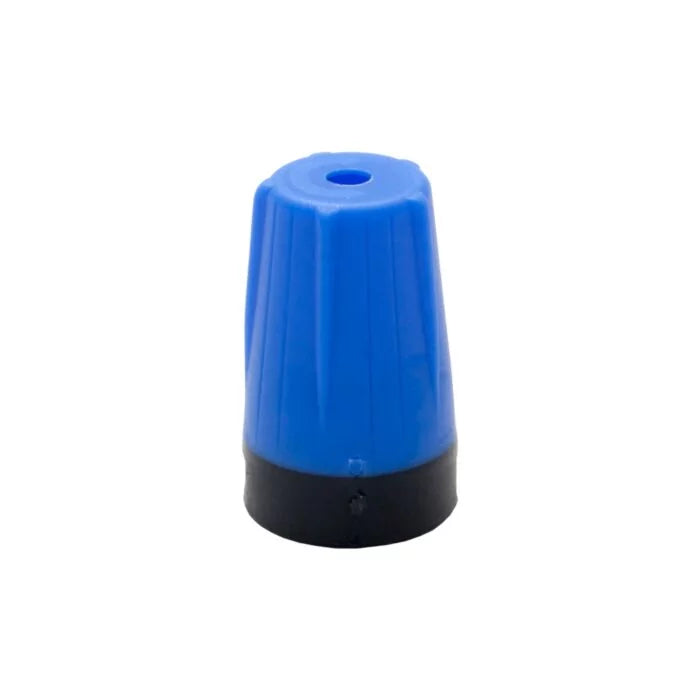

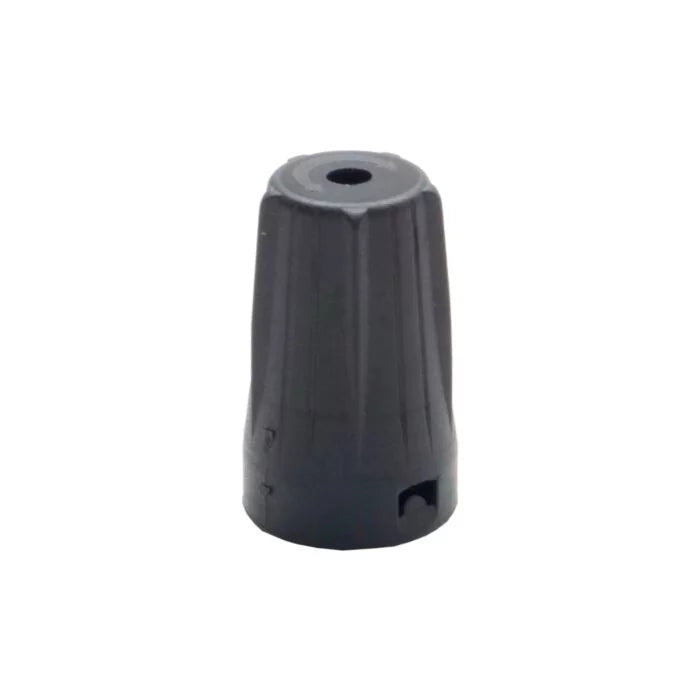

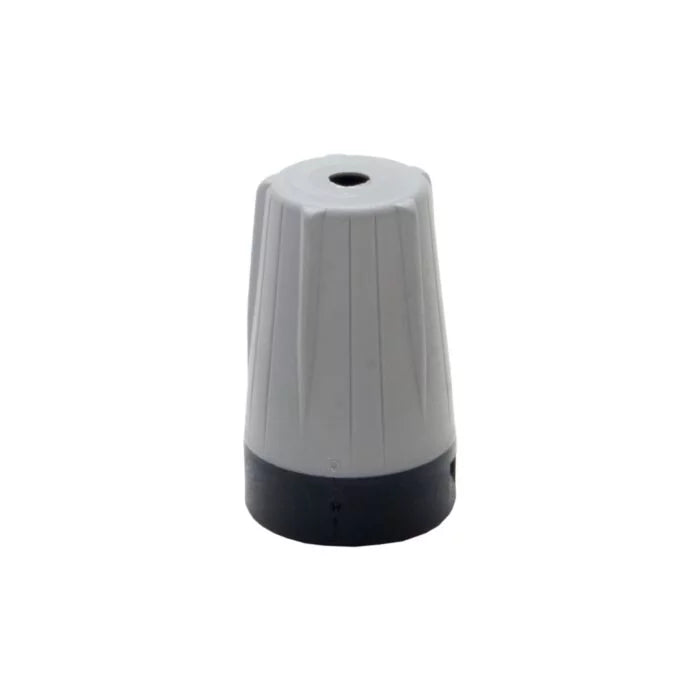

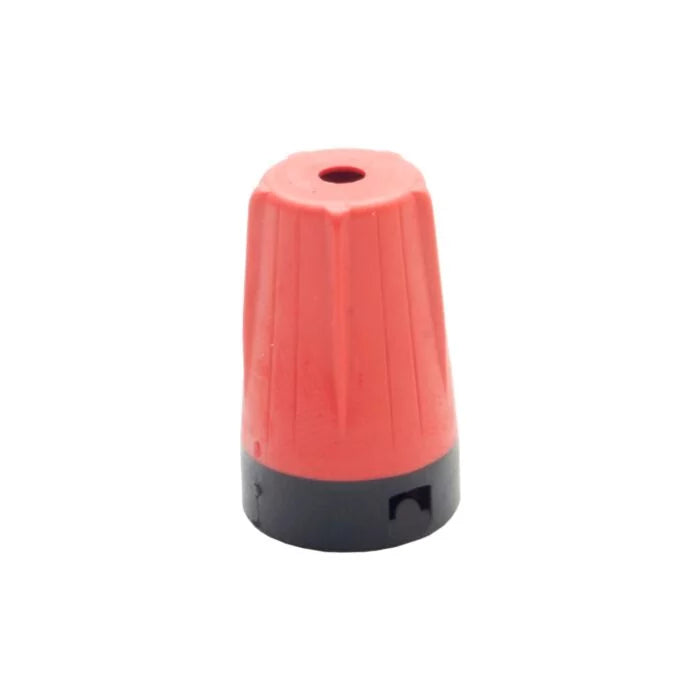

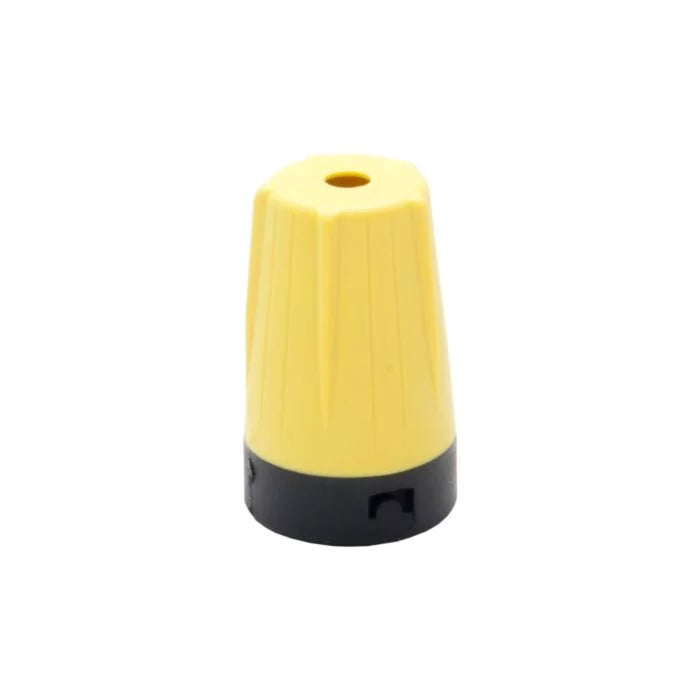

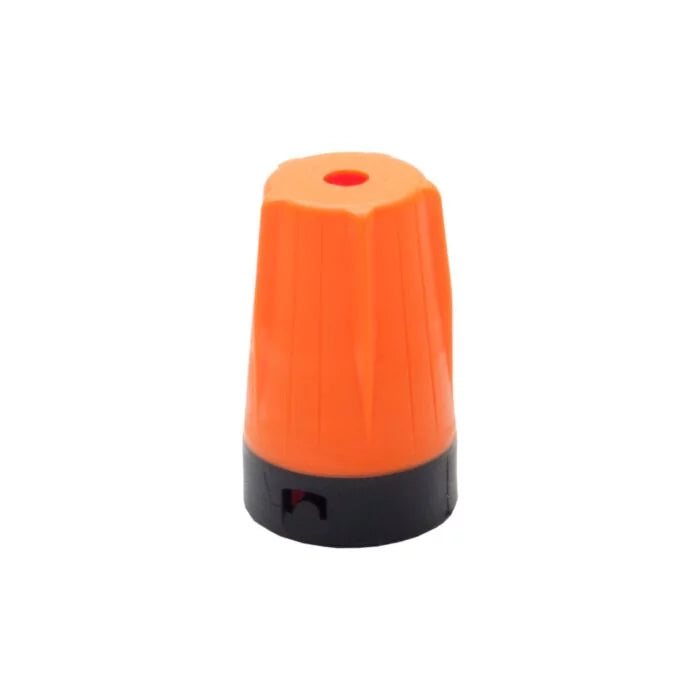

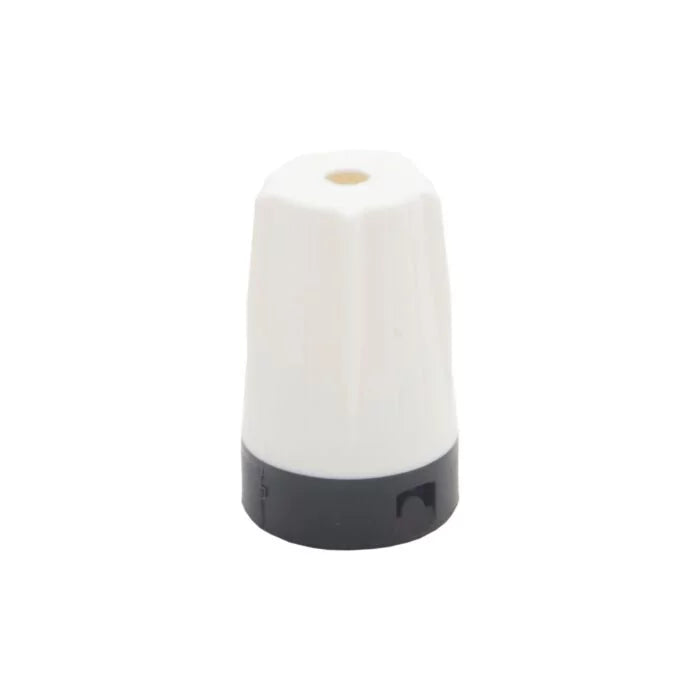

The integral cable strain relief boot gives an extended area of grip making these ideal for recessed connection panels or high-density termination panels , where restricted access to the ‘head’ of a conventional connector might be an issue. An integral black cable boot is standard with each connector (unless ordered in dissassembled packs - see ordering note at foot of group description) and provides strain relief. Additional coloured boots, for easy cable identification, may be ordered separately and substituted at the time of assembly.
